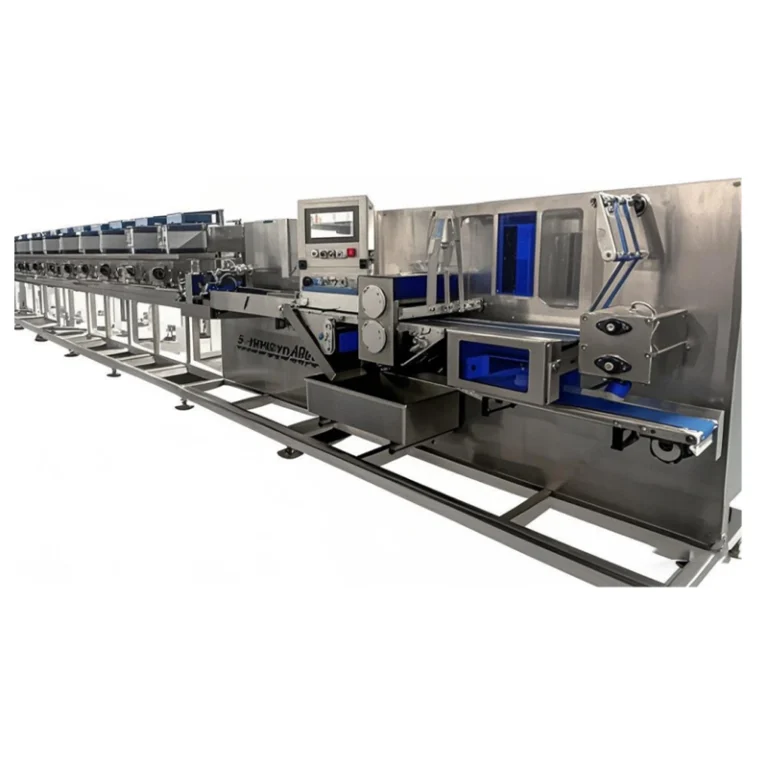

(Image for reference only; subject to actual product)
Basic Main Technical Parameters:

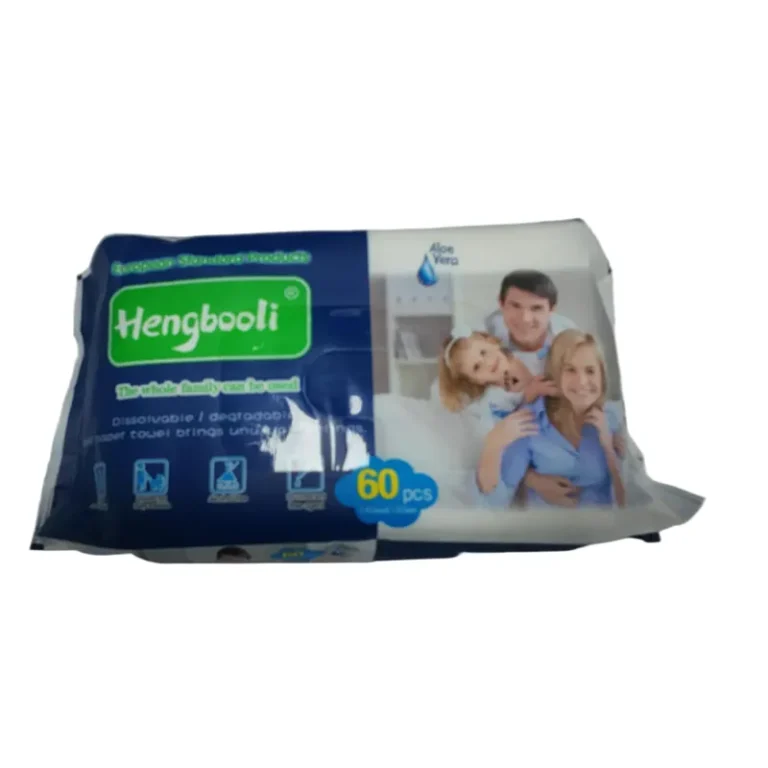

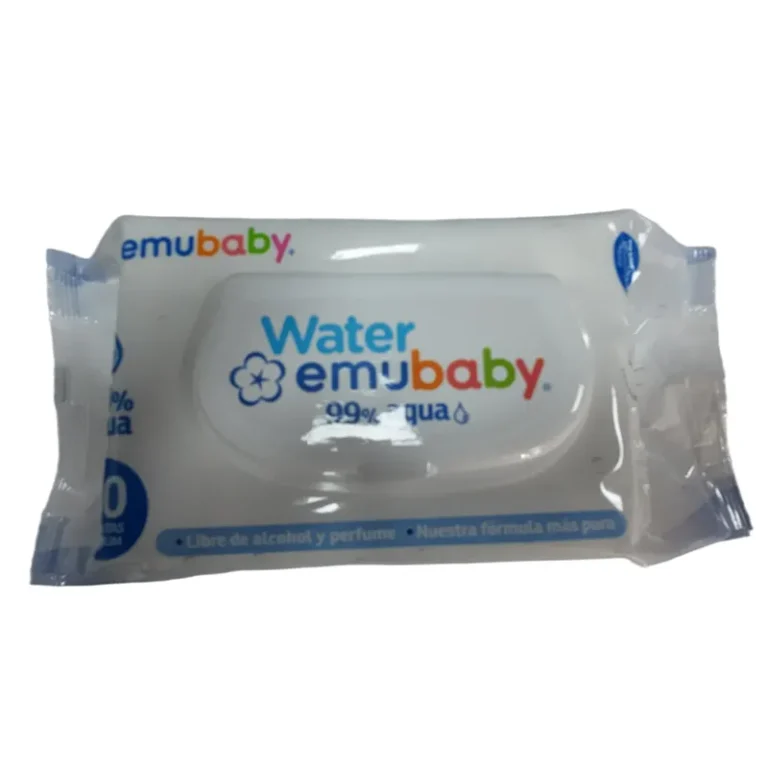

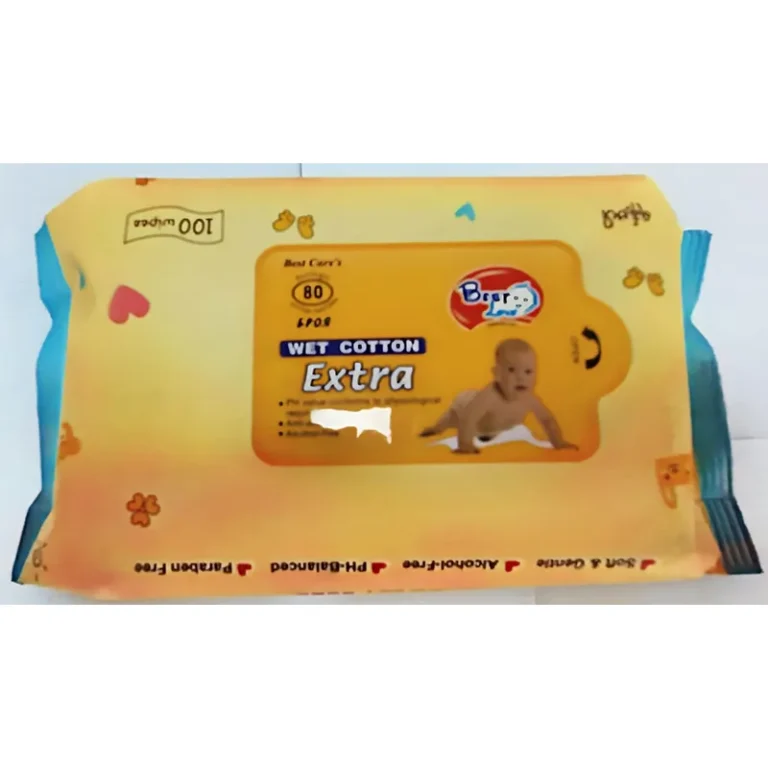

Product Type: Baby wet wipes, makeup remover wipes, ladies’ wipes, cleaning wipes, kitchen wipes, pet wipes, functional wipes
Design Speed: 800 cuts/minute (4-knife configuration)
4-Knife Speed & Cutting Length: 450-700 cuts/minute (cutting length: 100mm-150mm, depending on material length)
2-Knife Speed & Cutting Length: 400-500 cuts/minute (cutting length: 100mm-300mm, speed depending on material)
1-Knife Speed & Cutting Length: 100-200 cuts/minute (cutting length: 300mm-400mm, speed depending on material)
Sheets per Pack: 30-120 sheets/pack
Applicable Materials: Spunlace nonwoven fabric, degradable materials, thermal-bonded nonwoven fabric
Raw Material Grammage: 35-100g/㎡
Working Voltage: 380V 50Hz
Power: 15KW
Machine Weight: Approximately 8.5T
Raw Material Dimensions: Width: 750mm-1200mm; Roll diameter: 800mm-1200mm
Raw Material Shafts: 2 air-expanding shafts
Number of Lanes: 12 lanes
Folder Units: 12 sets
Material Racks: 2 sets of material racks (1 roll of raw material per rack, inline slitting; each rack can slit up to 6 lanes)
Unfolded Dimensions of Nonwoven Fabric:
4-knife product: Cutting length 100mm-150mm, width 150mm-300mm
2-knife product: Cutting length 140mm-300mm, width 150mm-300mm
1-knife product: Cutting length 250mm-400mm, width 150mm-300mm
Folded Dimensions (mm): Length (100-400) × Width (90-150) (specifications depend on the number of cutters)
Folding Type: “Z”-fold, “N”-fold; pop-up or non-pop-up (adjustable)
Counting Method: Automatic counting with automatic adjustable stacking system
Automatic Splicing Mechanism
Wetting System: Quantitative liquid adding system (liquid amount automatically adjusts with the main machine speed at different speeds); liquid amount can be set via touchscreen; dual tanks with stirrers; two 600L SUS304 stainless steel water tanks with three pumps (return pump, liquid adding pump, make-up pump)
HMI Control: Delta (Taiwan) 10-inch touchscreen
Process Parameter Recipe Storage: Facilitates specification change, retrieval and modification
Alarms & Protection: Low-material alarm prompt, automatic shutdown on material breakage, water level monitoring and alarm prompt
Electrical Control: Delta system and Delta full servo motors
Emergency Pull-Rope Stop Switch
Inline Slitting Device: Adjustable inline slitting width
Recipe Saving: Convenient for retrieval and review
Electrical Configuration List:
| No. | Component Name | Brand | Model Specification | Unit |
| 1 | Motion Controller | Delta | AS516E | Unit |
| 2 | Expansion Module | Delta | AS16AM10N-A | Piece |
| 3 | Expansion Module | Delta | AS16AN01T-A | Piece |
| 4 | Touchscreen | Delta | DOP110WS | Unit |
| 5 | Communication Cable | Delta | Ethernet Cable (10m) | Piece |
| 6 | Servo Fiber Optic Cable | Customized | EtherCAT Cable (30cm) | Piece |
| 7 | Servo Fiber Optic Cable | Customized | EtherCAT Cable (80cm) | Piece |
| 8 | Servo Driver | Delta | ASD-B3-1021-E | Unit |
| 9 | Servo Motor | Delta | ECM-B3M-EA1310RS1 | Unit |
| 10 | Servo Power Cable | Delta | ASD-B3-PW1007 | Piece |
| 11 | Motor Encoder Cable | Delta | ASD-B3-EN1007 | Piece |
| 12 | Brake Resistor | Customized | 500W75R | Piece |
| 13 | Servo Driver | Delta | ASD-B3-0721-E | Unit |
| 14 | Servo Motor | Delta | ECM-B3M-C20807RS1 | Unit |
| 15 | Motor Power Cable | Delta | ASD-B3-PW0007 | Piece |
| 16 | Motor Encoder Cable | Delta | ASD-B3-EN0007 | Piece |
| 17 | Servo Driver | Delta | ASD-B3-0721-E | Unit |
| 18 | Servo Motor | Delta | ECM-B3M-C20807RS1 | Unit |
| 19 | Motor Power Cable | Delta | ASD-B3-PW0007 | Piece |
| 20 | Motor Encoder Cable | Delta | ASD-B3-EN0007 | Piece |
| 21 | Brake Resistor | Customized | 300W 100R | Piece |
| 22 | Servo Driver | Delta | ASD-B3-4543-E | Unit |
| 23 | Servo Motor | Delta | ECM-B3M-L21845RS1 | Unit |
| 24 | Servo Power Cable | Delta | ASD-B3-HPW2007 | Piece |
| 25 | Motor Encoder Cable | Delta | ASD-B3-EN1007 | Piece |
| 26 | Brake Resistor | Customized | 1000W 50R | Piece |
| 27 | Servo Driver | Delta | ASD-B3-3043-E | Unit |
| 28 | Servo Motor | Delta | ECM-B3M-L21830RS1 | Unit |
| 29 | Servo Power Cable | Delta | ASD-B3-HPW2007 | Piece |
| 30 | Motor Encoder Cable | Delta | ASD-B3-EN1007 | Piece |
| 31 | Servo Driver | Delta | ASD-B3-1021-E | Unit |
| 32 | Servo Motor | Delta | ECM-B3M-E21310RS1 | Unit |
| 33 | Servo Power Cable | Delta | ASD-B3-PW1007 | Piece |
| 34 | Motor Encoder Cable | Delta | ASD-B3-EN1007 | Piece |
| 35 | Stepper Driver | Leadshine | DM1182 | Unit |
| 36 | Stepper Motor | Leadshine | 220CM12 | Unit |
| 37 | Inverter | Delta | VFD2A8MS43A | Unit |
| 38 | Photoelectric Switch | OMRON | TL-Q5MC1-Z | Piece |
| 39 | Pull-Rope Switch | SUNX | SN6170-SL-C-R | Set |
| 40 | Pull Rope | Customized | 15m with tensioning device and connector | Set |
| 41 | Liquid Level Switch | Customized | Double-ball type (0.8m for water tank) | Piece |
| 42 | Switching Power Supply | DELTA | PMT24V350W | Piece |
| 43 | Relay Base | HONGFA | 2-channel | Piece |
| 44 | Intermediate Relay | ABB | CR-MX024DC2L | Piece |
| 45 | Circuit Breaker | ABB | SF210 | Set |
| 46 | Contactor | ABB | AX25-0910 | Piece |
| 47 | Motor Switch | ABB | 1-1.6A | Piece |
| 48 | Button Box | KND | 1-hole | Piece |
| 49 | Button Box | KND | 3-hole (high position) | Piece |
| 50 | Buttons | Schneider | XB2 | Set |
| 51 | 3-Level Indicator Light | NZ | LTA-205W 24V | Piece |
| 52 | Aviation Connector | Customized | 16-pin 16A | Set |
| 53 | Aviation Connector | Customized | 10-pin 16A | Set |
| 54 | Socket Box | Customized | 5-hole 5A socket with base | Set |
| 55 | Cooling Fan | Customized | 120×120 with 120×120 cover | Set |
| 56 | Power Protector | Purchased Online | FXBGQ-4X | Piece |
| 58 | Transfer Box | Ruilian | JXH-2A | Piece |
