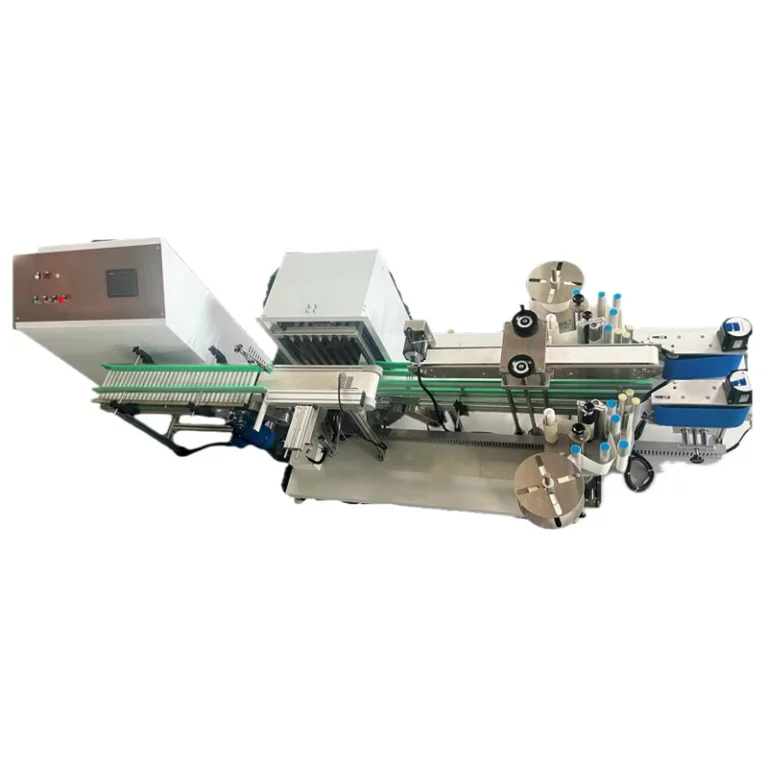

YY-TB Double side labeling machine

Technical Parameterst

Main parameters

1. Design speed: 40 lifts (2 packs, 1 lift)
2. Production speed: 25-38 units (2 packs per unit)
3. Product width: 90MM-120MM
4. Product quantity: 2-4 packs (3 packs of 80 pieces, 4 packs of 50 pieces)
5. Product height: 120-260MM (cannot exceed the design height of 260mm)
6. Product length: 150-260MM
7. Label length: 120-230MM
8. Label width: 50-100MM
9. Labeling position: Mechanical adjustment of labeling height position, touch screen setting of front and rear labeling positions
10. Label roll diameter: outer diameter 400MM (2 bundles of labels on each side)
11. Gas source pressure: 0.4-0.8Mpa
12. Control System: Renesas (China)
13. Human machine interface touch screen: Lei Sai (China)
14. Security system: Complies with CE standards

Main features

1. Label one on each side of the product
2. Conveyor belt product conveying counting
3. Stacking of material receiving cylinders
4. Side push 1 cylinder material handling
5. Product conveyor belt mechanism
6. Upward pressure conveying mechanism
7. External actions of two labeling mechanisms
8. Scientific design, compact structure, reduced footprint, convenient operation and maintenance, one person can operate multiple units
9. The main components are machined by a four axis machining center machine tool, and the electrical components are branded
10. Human machine interface operation control
11. Finished product output

System features

1. Touch screen 7-inch
2. The labeling mechanism adopts servo driven positioning control
3. PLC control
4. Voltage: Three phase 380V
5. Total power: 3KW
