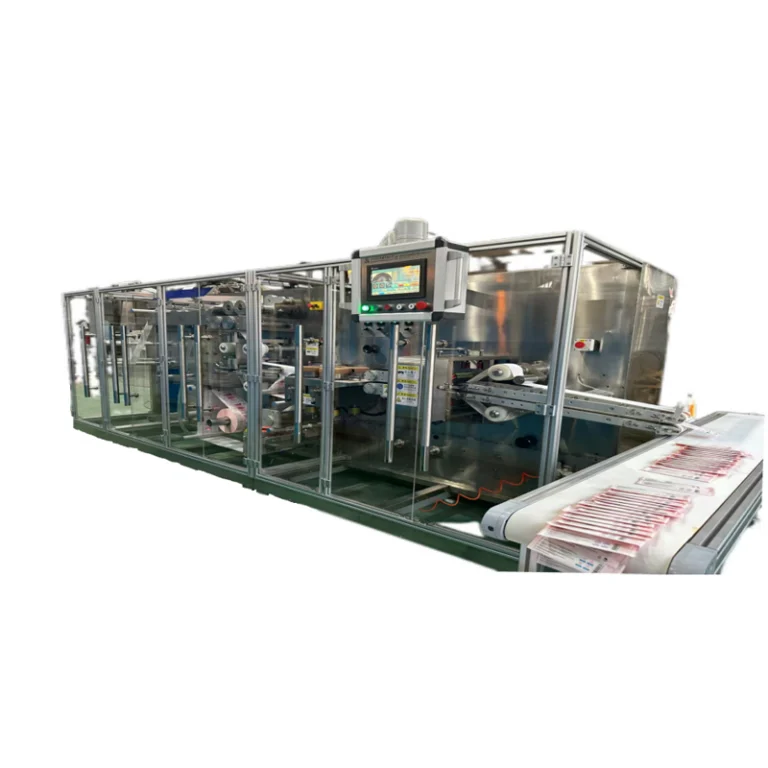

This equipment is a fully automatic and intelligent device designed for the large-scale production of single piece independent packaging wet wipes (including disinfectant wet wipes, makeup wet wipes, cleaning wipes, alcohol wet wipes, etc.), integrating the full process technology of “raw material processing humidification infiltration precision molding independent packaging finished product output”. Its core advantages lie in high-speed stability, controllable accuracy, and strong compatibility, which can meet the efficient production needs of multiple categories of wet wipes. The following is an explanation from four dimensions: technical architecture, core modules, accuracy guarantee, and intelligent design.
Technical parameters of YY-DP-400 fully automatic high-speed single sheet wet wipe machine with left and right rolls
This document systematically summarizes the technical indicators of YY-DP-400 equipment from four dimensions: core production parameters, structural and supporting parameters, functional configuration parameters, and electronic control system configuration, providing accurate data support for equipment selection, installation and commissioning, and production planning.
1、 Core production parameters (related to product and efficiency)
This parameter directly determines the production capacity, product compatibility, and applicable scenarios of the equipment, and is the core basis for matching production needs.
| Serial Number | Parameter Category | Specific Indicators | Remarks And Explanations |

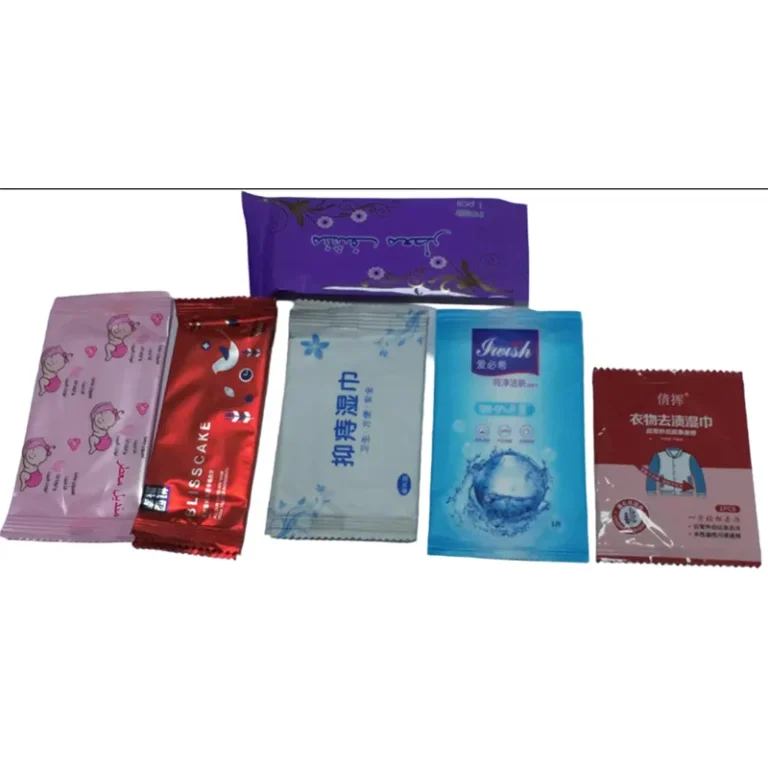

| 1 | Product type | Disinfection wipes, makeup wipes, cleaning wipes, alcohol wipes | cover multiple scenarios such as household, commercial, and basic disinfection, meeting the standards of GB/T 27728-2011 and GB 15979-2021 |
| 2 | The design speed | 450 pieces per minute | The theoretical maximum operating speed of the equipment needs to be adjusted based on the actual material characteristics |
| 3 | The actual production capacity range | 250-350 pieces per minute | which is affected by the weight of the substrate (such as 100g/m ² thick material with slightly lower speed) and the toughness of the packaging film |
| 4 | Number of pieces per package | 1 piece/pack | Fixed single piece independent packaging, suitable for portable and disposable use scenarios |
| 5 | Applicable materials (substrate) | Water jet cloth, biodegradable materials | Mainstream wet wipe substrates, biodegradable materials that meet environmental requirements, suitable for green production needs |
| 6 | Material weight | 35-100 grams per square meter | Covering thin (35-50g/m2, such as makeup wipes) to thick (80-100g/m2, such as disinfectant and cleaning wipes) substrates |
| 7 | Packaging film specifications | Materials: PE&PET, OPP&PE (aluminum plated film), OPP&CPP, PET&CPP (aluminum plated film); Thickness: 2.5 to 7 threads | 1 thread=0.01mm, aluminum plated film optional (improves light avoidance and extends the shelf life of wet wipes) |
| 8 | Product size (wet wipes) | Expand size: (160-260) × (150-300)Mm (L × W): Folding size: (80-130)X(50-85) mm (LXW) | Foldable size suitable for portable packaging, unfolded size meets different cleaning area requirements |
| 9 | Packaging bag | (100-200)×(60-80)mm(L×W) | Match the size of the folded wet wipes to ensure the bag |
| 10 | Folding type | Z-shaped and W-shaped | Two mainstream folding forms that can be switched online through a touch screen without the need to disassemble mechanical components |
| 11 | Humidification system | Mixing bucket (with mixer)+spray/soaking dual-mode switching; The amount of liquid added can be adjusted | Spray compatible with low viscosity liquids (such as 75% alcohol), soak compatible with high viscosity liquids (such as moisturizing cosmetics) |
2. Structure and supporting parameters (related to equipment installation and hardware)
The parameters in this section pertain to the physical dimensions, weight, and specifications of supporting components of the equipment, and are used for planning the workshop layout, installation conditions, and supporting facilities.
| Serial Number | Parameter Category | Specific Indicator | Remarks |
| 1 | Raw material roll width | 150-300mm | It is compatible with rolls of different width substrates, reducing substrate cutting waste |
| 2 | Storage tank | Capacity 400L; equipped with southern stainless steel pumps (including water supply pump and return pump) | Made of stainless steel for corrosion resistance, suitable for alcohol and disinfectant liquids; the return pump enables liquid material circulation, with a utilization rate of over 98% |
| 3 | Bucket size | 800×900×1500mm（L×W×H） | It is used to store the supplementary liquid for the humidification system and needs to be placed in conjunction with the liquid storage tank. It is recommended to be placed near the water source |
| 4 | Equipment size | 6000×1100×1700mm（L×W×H） | Compact structure design, saving 15% installation space compared to equipment with the same production capacity, facilitating multi-equipment layout in the workshop |
| 5 | Machine weight | 3 吨（T） | A flat ground with a load capacity of ≥3 tons is required. It is recommended to reserve maintenance space during installation (≥500mm on all sides) |
| 6 | Core consumable parts | Cutting blade: 440C alloy-inlaid material (such as YY-DP01-17-06 cutting blade 350×1.2×25mm); heating tube: φ8×120mm. | The 440C cutting blade has a hardness of HRC58-60 and a lifespan of 800,000 to 1,000,000 pieces. The heating tube is compatible with a temperature control system, ensuring uniform heating |
2.3 Functional Configuration Parameters (Equipment Performance & Safety-Related)
These parameters reflect the equipment’s automation level, precision control, and safety protection capabilities, serving as the core guarantee for equipment stability and operational safety.
| No. | Parameter Category | Specific Indicators | Remarks |
| 1 | Drive & Control System | Drive mode: Delta servo control system; Master control system: Delta bus motion control system + AS516E-B PLC | Servo drive response speed <10ms; synchronization precision of each process (cutting/folding/sealing) is ±0.1mm |
| 2 | Deviation Correction System | Independent deviation correction for nonwoven fabric (base material) and packaging film; equipped with RIKO fiber amplifier and Panasonic LX-101 color mark sensor | Real-time detection of material deviation (precision ±0.5mm) and automatic adjustment of material position to avoid cutting/packaging misalignment |
| 3 | Temperature Control System | 8-channel independent YUDIAN AI-207 temperature controllers (equipped with K-type M6 temperature probes); temperature control precision ±2℃ | Independently controls the temperature of middle sealing, transverse sealing, and heating rings, meeting food-contact hygiene requirements |
| 4 | Tension Control | Packaging film tension: Controlled by Delta VFD4A2MH43ANSAA inverter; Base material tension: Assisted adjustment by mechanical tensioning wheel | Adapts to packaging films of different thicknesses (2.5-7 mils) to prevent film stretching/deformation or breakage |
| 5 | Human-Machine Interaction (HMI) | Delta 10-inch touchscreen (DOP-110WS); supports storage and recall of over 100 sets of recipes | Visual operation interface; parameters can be directly recalled during product changeover, with changeover time <30 minutes |
| 6 | Safety Protection | Emergency braking system (3 KND BS542C emergency stop buttons) + acrylic protective cover + blade safety guard | Emergency stop response time <0.5 seconds; equipment automatically shuts down when the protective cover is opened, complying with industrial safety standards |
| 7 | Finished Product Output | Conveyor belt (controlled by Delta VFD2A8MS21ANSAA inverter); friction force dynamically adjusted with speed | Prevents finished product accumulation or conveying jams, adapting to the production rhythm of 250-350 sheets/minute |
2.4 Electrical Control System Configuration Parameters (Specifications of Core Electrical Components)
These parameters detail the brand, model, and quantity of the equipment’s key electrical components to ensure accuracy in spare parts procurement, maintenance, and replacement.
| No. | Component Category | Brand | Model Specification | Unit | Quantity | Remarks |
| 1 | Programmable Logic Controller (PLC) | Delta | AS516E-B | Unit | 1 | Core control unit of the equipment, responsible for logical operations and command issuance |
| 2 | Touchscreen | Delta | DOP-110WS | Unit | 1 | 10-inch color screen, human-machine interaction interface |
| 3 | Servo Drive (Transverse Sealing) | Delta | ASD-A3-3023-E | Unit | 1 | Matched with 3KW servo motor to control transverse sealing action |
| 4 | Servo Drive (Film/Base Material Feeding & Cutting) | Delta | ASD-A3-1521-E | Unit | 3 | Matched with 1.5KW servo motor to control base material feeding and cutting |
| 5 | Servo Drive (Folding) | Delta | ASD-A3-0721-E | Unit | 1 | Matched with 750W servo motor to control the folding mechanism |
| 6 | Inverter (Unwinding) | Delta | VFD4A2MH43ANSAA | Unit | 2 | Controls the unwinding speed of base material/packaging film to stabilize tension |
| 7 | Inverter (Discharging) | Delta | VFD2A8MS21ANSAA | Unit | 1 | Controls the speed of the finished product conveyor belt |
| 8 | Temperature Controller | YUDIAN | AI-207 D2 G | Piece | 8 | Independently controls the temperature of each electric heating component, with data display and alarm functions |
| 9 | Intermediate Relay | ABB | CR-MX024DC2L | Piece | 16 | Converts control circuit signals to ensure the stability of the electrical system |
| 10 | Photoelectric Sensor | OMRON | E3FA-DN12 | Piece | 1 | Detects the presence of base material to prevent shutdown due to material shortage |
| 11 | Emergency Stop Button | KND | BS542C | Piece | 3 | One each at key positions (operation end, maintenance end) for emergency shutdown |
| 12 | Circuit Breaker | LS | BKN Series (3P 60A/40A/16A, etc.) | Piece | 9 | Protects circuits in separate branches to prevent overload and short circuit |
| 13 | Cooling Fan | Custom-made | 120×120mm (with cover) | Set | 4 | Cools the electrical control cabinet and servo motor to extend component service life |
2. Structure and supporting parameters (related to equipment installation and hardware)
The parameters in this section pertain to the physical dimensions, weight, and specifications of supporting components of the equipment, and are used for planning the workshop layout, installation conditions, and supporting facilities.
Note: All major electrical components (such as Delta servos and ABB relays) have passed CE certification, complying with international electrical safety standards. The equipment is compatible with 380V 50Hz industrial power supply (total power: 10KW).
3. Technical Description of YY-DP-400 Left-Right Winding Automatic High-Speed Single-Sheet Wet Wipe Machine
This equipment is a fully automatic and intelligent machine designed for large-scale production of single-sheet independently packaged wet wipes (including disinfectant wet wipes, makeup remover wipes, cleaning wipes, alcohol wet wipes, etc.). It integrates full-process technologies of “raw material handling – humidification & impregnation – precise forming – independent packaging – finished product output”. Its core advantages lie in high-speed stability, controllable precision, and strong compatibility, which can meet the efficient production needs of various types of wet wipes. The following sections elaborate on its technical architecture, core modules, precision assurance, and intelligent design from four dimensions.
3.1 Equipment Technical Architecture & Core Positioning
3.1.1 Technical Positioning
Production Mode: Fully automatic with no manual intervention throughout the process. From the unwinding of spunlace nonwoven fabric/degradable base material to wet wipe cutting, folding, impregnation, packaging, coding, and finished product conveying, no manual step-by-step operation is required. It is suitable for “single-shift 8-hour” continuous production scenarios.
Efficiency Indicators: The designed speed reaches 450 sheets/minute, and the actual production speed is 250-350 sheets/minute (dynamically adjusted based on base material weight and packaging film thickness). The maximum theoretical daily output can reach 168,000 sheets (calculated as 350 sheets/minute × 8 hours × 60 minutes), making it a core equipment for medium-to-large wet wipe production lines.
Product Compatibility: It supports multi-specification wet wipes with folded sizes of (80-130)×(50-85) mm and unfolded sizes of (160-260)×(150-300) mm. It is compatible with 35-100g/m² spunlace nonwoven fabric, degradable materials, and multi-material packaging films such as PE/PET and OPP/PE (aluminum-plated film), meeting the product needs of different application scenarios (household, commercial, basic medical disinfection).
3.2 Technical Analysis of Core Production Modules
3.2.1 Raw Material Handling Module: Stable Feeding, Reduced Shutdown

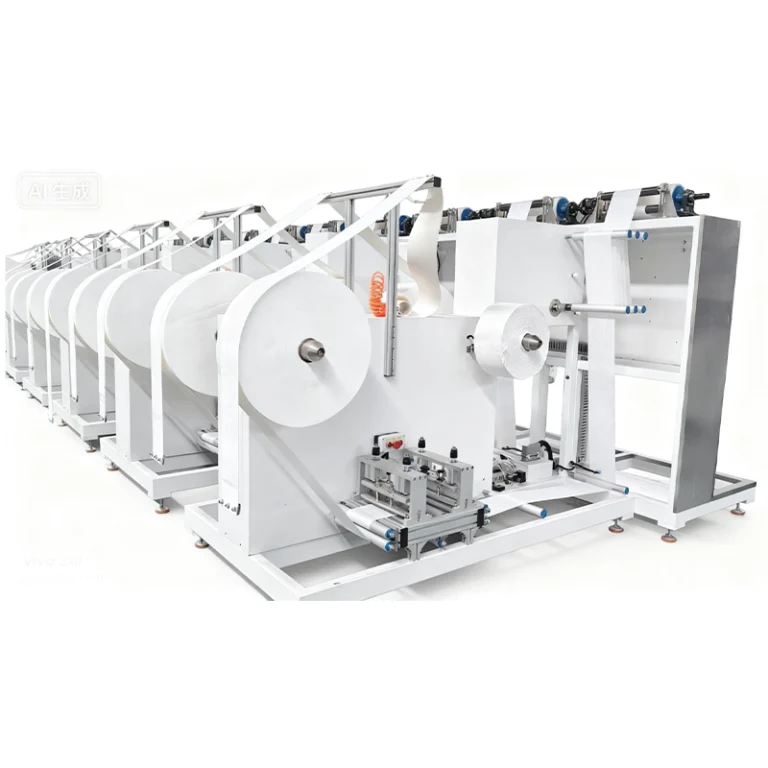

Unwinding & Splicing Technology: Adopts a “spunlace nonwoven fabric center unwinding” design, combined with an automatic splicing mechanism, supporting base material rolls with a width of 150-300 mm. No shutdown is required during roll change; the connection between old and new rolls can be completed in an extremely short time (<30 seconds), increasing the effective operation rate to over 92% (the effective rate of traditional single-roll unwinding equipment is about 85%).
Double Deviation Correction System: Both the base material (nonwoven fabric) and packaging film are equipped with independent deviation correction devices (equipped with RIKO fiber amplifier and Panasonic LX-101 color mark sensor). They detect material deviation in real time (precision ±0.5mm) and automatically adjust the material position through the servo motor, avoiding cutting misalignment and packaging film wrinkling caused by base material deviation, and ensuring the precision of subsequent processes.
Tension Control: The packaging film is controlled by a combination of “Delta inverter (VFD4A2MH43ANSAA) + tension sensor”. The tension is dynamically adjusted according to the packaging film thickness (2.5-7 mils) to prevent film stretching/deformation (for thin films) or breakage (for thick films), adapting to packaging films of different toughness such as OPP/CPP and PET/CPP.
3.2.2 Humidification & Impregnation Module: Uniform Liquid Control, Adaptable to Multi-Formulas
Multi-Mode Liquid Feeding Technology: Integrates “spray + soak” two liquid feeding modes, which can be switched with one click via the touchscreen:
Spray Mode: Uses “pipe-type nozzles + Nanfang stainless steel water supply pump” for low-viscosity liquids such as alcohol wet wipes and disinfectant wet wipes (e.g., 75% alcohol, quaternary ammonium salt solution), achieving uniform spraying (liquid absorption deviation of each wet wipe <5%);
Soak Mode: Suitable for high-viscosity liquids (e.g., makeup remover liquid containing moisturizing ingredients). The base material is impregnated and then the liquid is controlled by squeeze rollers to ensure stable liquid absorption (the pressure of squeeze rollers can be adjusted via PLC, with liquid control precision ±0.2g/sheet).
Liquid Circulation & Mixing: The 400L liquid storage tank (equipped with Nanfang stainless steel return pump) is linked with a “mixing barrel + continuous mixing system” to stir the liquid in real time (adjustable rotation speed: 100-300r/min), preventing component precipitation (e.g., stratification of bactericides in disinfectant wet wipes). At the same time, the unabsorbed liquid is returned to the liquid storage tank through the circulation pipeline, increasing the liquid utilization rate to over 98% and reducing waste.
Liquid Level Monitoring: The water bucket is equipped with a “double-position float liquid level switch” to monitor the liquid level of the storage tank in real time. When the liquid level is low, an alarm is automatically triggered to prompt liquid replenishment, avoiding “dry sheets” of wet wipes due to liquid shortage.
3.2.3 Forming & Folding Module: Precise Folding, Online Adjustable
Dual Folding Methods: Supports “Z-type” and “W-type” folding. The folding mechanism is driven by a Delta servo motor (ECMA-C10807RS, 750W), with folding precision up to ±1mm. For different folding sizes (e.g., 80×50mm, 130×85mm), the folding position can be directly adjusted via the touchscreen (equipped with KTC-500 linear displacement sensor, positioning precision ±0.1mm) without disassembling mechanical parts, and the changeover time is <30 minutes.
High-Precision Cutting System: Adopts a combination of “440C alloy-inserted cutting knife + independent bottom knife” (e.g., YY-DP01-17-06 cutting knife: 350×1.2×25mm). The blade hardness reaches HRC58-60, with a cutting service life of 800,000-1,000,000 sheets. The cutting mechanism is controlled by a Delta servo driver (ASD-A3-1521-E), and the cutting speed is synchronized with the base material feeding speed (phase adjustment precision ±0.1°), avoiding “connected cuts” (multiple sheets stuck together) or “missing corners” (incomplete cutting).
3.2.4 Packaging & Forming Module: Efficient Sealing, Adaptable to Multi-Specifications
Dual Sealing System:
Middle Sealing System: Adopts a “traction preheating + longitudinal sealing heating” design. The heating tube (φ8×120mm) is equipped with a YUDIAN AI-207 temperature controller (temperature control precision ±2℃). The heating temperature is set according to the packaging film material (e.g., PE film melting point: 110-130℃; PET film melting point: above 250℃) to ensure firm middle sealing (peel strength ≥3N/15mm, complying with GB/T 19741 standard);
Transverse Sealing System: Driven by “independent mechanical cam + Delta 3KW servo motor (ECMA-F11830RS)”, the sealing speed is synchronized with the production speed. The transverse sealing spacing can be adjusted via PLC, adapting to packaging bag sizes of (100-200)×(60-80) mm. The cam structure ensures stable transmission, with transverse sealing deviation <0.3mm, avoiding wet wipe moisture due to “incomplete sealing”.
Online Coding & Finished Product Output: Integrates a coding system (suitable for production date, batch number, etc.) with coding position precision ±1mm. The finished products are output through a “conveyor belt controlled by Delta inverter (VFD2A8MS21ANSAA)”. The friction force of the belt is dynamically adjusted with the speed (adjustable speed: 0-5m/min) to prevent finished product accumulation or conveying jams.
3.3 Precision & Stability Assurance Technology
3.3.1 Mechanical Precision Assurance
Core Component Processing: Main mechanical components (such as folding rollers, cutting knife holders, and sealing molds) are manufactured by a “CNC 4-axis machining center” with a machining precision of IT7 grade (tolerance ±0.015mm), ensuring smooth operation after component assembly and reducing precision deviation caused by mechanical gaps.
Wear-Resistant Component Selection: Key wear parts are made of high-durability materials, such as 440C alloy-inserted cutting knives (service life over 800,000 sheets), imported precision bearings for conveying roller shafts (service life 6-12 months), and hard chrome-plated surfaces of packaging film traction wheels (hardness HRC62, wear-resistant), reducing maintenance frequency.
3.3.2 Electrical Control System Precision
Bus-Type Control Architecture: Adopts “Delta AS516E-B PLC + Delta bus motion control system” to realize real-time data interaction between “servo motor – inverter – temperature controller – sensor” (response speed <10ms). The synchronization precision of each process (cutting, folding, sealing) is ±0.1mm, avoiding operational incoordination caused by signal delay.
HMI & Recipe Management: The 10-inch Delta touchscreen (DOP-110WS) supports “recipe storage and recall”, which can store more than 100 sets of production parameters (such as the size, liquid dosage, and sealing temperature of different wet wipes). During product changeover, recipes can be directly recalled without repeated debugging, increasing changeover efficiency by 50%.
Precise Temperature Control: 8-channel independent YUDIAN AI-207 temperature controllers (equipped with K-type temperature probes) independently control the temperature of electric heating components such as middle sealing, transverse sealing, and heating rings. They display and record temperature data in real time (temperature curves within 72 hours can be traced), meeting the production hygiene requirements for food-contact wet wipes (e.g., temperature fluctuation of heating components <±2℃, avoiding harmful substance decomposition from packaging film due to overheating).
3.4 Safety & Maintenance Design
3.4.1 Safety Protection Technology
Multi-Layer Safety Guarantee: Equipped with “emergency braking system (3 KND BS542C emergency stop buttons) + acrylic protective cover + blade safety guard”. The emergency stop response time is <0.5 seconds, and the equipment automatically shuts down when the protective cover is opened. At the same time, a safety door interlock is set to prevent operators from touching moving parts (such as cutting knives and folding rollers) by mistake.
Electrical Safety: The circuit system is divided into “main circuit (380V) + control circuit (24V)”. The main circuit is equipped with LS circuit breakers (BKN series), ABB contactors, and thermal relays to prevent overload and short circuit. The control circuit uses a DELTA DRL-24V240W switching power supply, and low-voltage power supply reduces the risk of electric shock. Major electrical components have passed CE certification, complying with international safety standards.
3.4.2 Maintenance Convenience Design
Compact Structure: The equipment dimensions are only 6000×1100×1700mm (L×W×H), saving about 15% of installation space compared to equipment with the same capacity. Maintenance windows are reserved at key maintenance positions (such as cutting knives, heating tubes, and deviation correction devices), allowing component replacement without disassembling the entire machine.
Standardized Wear Parts: Core wear parts (such as cutting knives, bottom knives, heating tubes, and PU belts) adopt standardized specifications (see the parts list for details, e.g., YY-DP01-08-07 bottom knife: 130×10×28mm). They can be stocked in batches, no customization is required during replacement, and maintenance costs are reduced by 20%. A dedicated toolbox is also provided for daily maintenance.
Status Monitoring & Alarm: The touchscreen displays the equipment’s operating status in real time (such as motor speed, temperature, and liquid level). When a fault occurs (such as motor overload, abnormal temperature, or material shortage), an audible and visual alarm (three-stage indicator light + buzzer) is triggered immediately, and the fault cause and troubleshooting steps are displayed on the screen, shortening the fault handling time (average <15 minutes).
3.5 Summary of Technical Advantages
High Efficiency: Dual-roll unwinding + automatic splicing + high-speed servo drive, with actual production speed of 250-350 sheets/minute, meeting the mass production needs of medium-to-large orders;
High Precision: Double deviation correction + servo synchronization + independent temperature control, with folding, cutting, and sealing precision within ±1mm, and defective rate <0.1%;
Strong Compatibility: Adapts to multi-material base materials (35-100g/m²), multi-specification sizes, and multi-type liquids, enabling quick product changeover (changeover time <30 minutes);
Intelligence: Bus control + recipe management + fault self-diagnosis, with low operation threshold (ordinary workers can be on duty after 1 day of training) and convenient maintenance;
Safety: Multi-layer protection + low-voltage control + CE-certified components, complying with industrial safety production standards and ensuring the safety of operators and equipment.
The technical scheme of this equipment can meet the requirements of national standards such as GB/T 27728-2011 Wet Wipes and GB 15979-2021 Hygienic Standards for Disposable Sanitary Products, and is suitable for large-scale single-sheet wet wipe production lines in hygiene product enterprises and daily chemical factories.
4. Explanation of Technical Parameters
Technical parameters refer to specific values and indicators that describe the performance, function, structure, and other characteristics of a product, equipment, or system. They are important bases for measuring product quality and performance, helping users select suitable products or equipment according to their own needs, and ensuring their normal use and maintenance. The following are common types of technical parameters:
Hardware Parameters: For example, in computer hardware, they include the number of processor cores, clock speed, cache size, memory type, capacity, speed, storage type, capacity, interface, etc. These parameters determine the equipment’s operating speed, data processing capability, and storage capacity.
Software Parameters: Such as operating system version, supported hardware, update frequency, application function list, performance benchmarks, compatibility requirements, etc. Software parameters determine the adaptability between software and hardware and the performance of the software.
Network Performance Parameters: Including bandwidth, latency, packet loss rate, throughput, etc. These parameters reflect the data transmission capability and stability of the network, which are crucial for network communication and data transmission.
Physical Property Parameters: Including equipment dimensions, weight, etc. These parameters have an important impact on the installation, transportation, and use environment of the equipment.
Energy Supply Parameters: Such as power supply voltage range, frequency, power, etc. These parameters ensure that the equipment can operate stably under appropriate power supply conditions.
Environmental Adaptability Parameters: Including operating temperature, storage temperature, humidity range, altitude, etc. These parameters describe the environmental conditions in which the equipment can operate normally, which is particularly important for equipment used in different environments.
Precision Parameters: In some precision instruments or equipment, precision parameters are crucial, such as the measurement precision of measuring instruments and the processing precision of processing equipment.
5. YY-DP400 Spare Parts List
| No. | Part Code | Part Name | Specification | Unit | Quantity |
| 1 | YY-DP01-08-07 | Bottom Knife | 130×10×28 | Piece | 2 |
| 2 | YY-DP01-08-08 | Cutting Knife | 130×8×28 | Piece | 2 |
| 3 | YY-DP01-14-22 | Bottom Knife | 120×4×24.5 | Piece | 2 |
| 4 | YY-DP01-14-23 | Toothed Cutting Knife | 120×4×26 | Piece | 2 |
| 5 | YY-DP01-12-23 | Heating Coil | – | Piece | 2 |
| 6 | YY-DP01-17-06 | Cutting Knife | 350×1.2×25 | Piece | 2 |
| 7 | YY-DP01-17-11 | Bottom Knife | 350×4×25 | Piece | 2 |
| 8 | – | Heating Tube | φ8×120 | Piece | 8 |
| 9 | – | Platinum Resistance Thermometer | M6 | Piece | 4 |
| 10 | – | Blue PU Belt | 825×100×2 | Piece | 1 |
| 11 | – | Green Round Belt | φ5 | Meter | 3 |
| 12 | – | Flat Belt | 630L-25 | Piece | 2 |
| 13 | – | Toolbox | – | Set | 1 |
